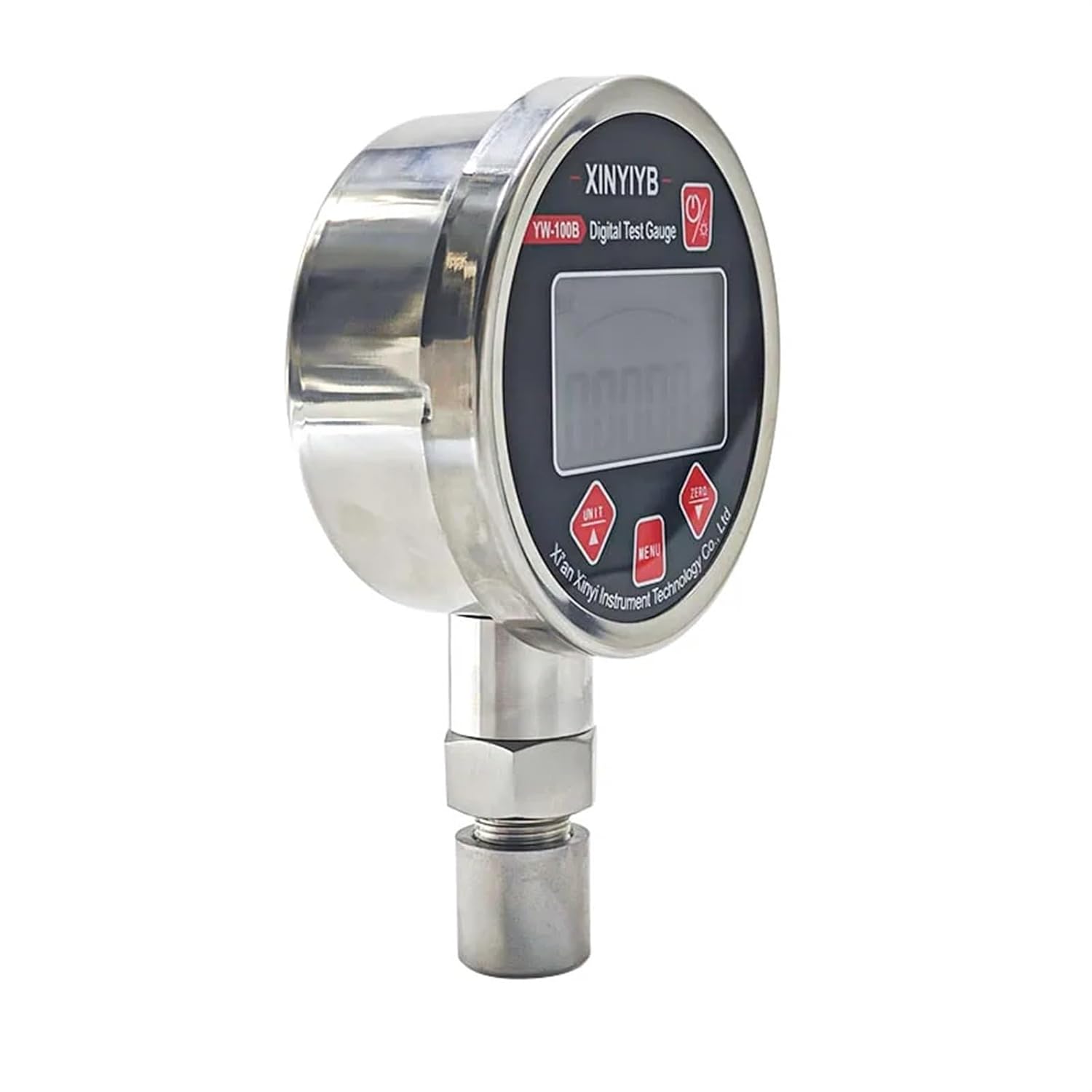

Precision Digital Vacuum Pressure Compound Gauge Display Digital Pressure Gauge(0-25Mpa)

Pressure GaugesDigital Pressure GaugeYW-100B digital pressure gauge imported sensor, superior performance, high accuracy, corrosion resistance, impact resistance, anti-vibration, high stability, etc.; signal processing circuitry using the latest ultra-low-power processors,signal processing and power management chip chips, using a large capacity,high performance lithium battery-powered, no external power supply.Percentage using the digital display and analog display, intuitive readings, the product precision can 0.05 for ordinary pressure gauge, precision pressure gauge and pressure transmitter calibration and test, instead of the more traditional mechanical pointer pressure table-site measuring pressure.Technical ParametersProduct nameDigital pressure gaugeModelYW-100BMeasuring range-0.1~0~100MPaMeasuring mediumGas,liquid,oil,waterPressure typeGage pressure, absolute pressure, differential pressureAccuracy0.5%FS(default), 0.4%FS, 0.2%FS, 0.1%FS, 0.05%FS,Respond time<;0.1SOverload capacity<;40MPa150% 40MPa120%Long-term stability0.2% FS/yearThread typeM20*1.5, G1/2, G1/4 (Can be )Dial size100mm (Can be )Display digits4 digits displayPower supply3V; 4.5VMaterial304 stainless steelAmbient temperature-20~80Product Image==========Hign-concerned Chemical : NoneModel Number : YW-100BMax Measuring Range : 200 PSI & AboveDisplay Type : DIGITALDial Diameter : 2 - 3.9 InchesPressure Range : -0.1~0~100MPaAccuracy : 0.5%,0.4%,0.2%,0.1%,0.05%,Thread : M20x1.5Dial size : 100mm

• Pressure Gauges
• Precision Digital Vacuum Pressure Compound Gauge Display Digital Pressure Gauge
